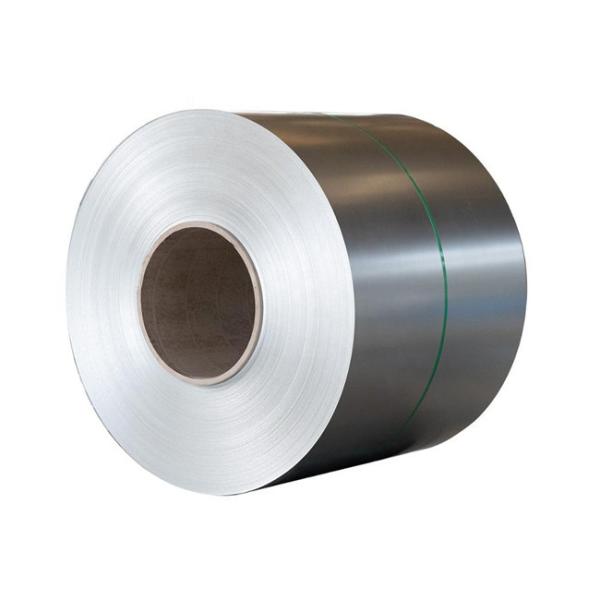

AISI 420 Stainless Spring Steel Strip

AISI420 - X20Cr13 - 1.4021 is a chrome-alloyed heat treatable steel with medium carbon content which is rust proof. 1.4021 has a good corrosion resistance because of its chrome content in moderate aggressive, non chloric substances like soap, solvents and organic acid.

Dimensions and tolerances
Thickness: 0.01 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 5 to 1219 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.

Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement

AISI 420 Stainless Strip Dimensions and tolerances

Thickness: 0.1 to 6mm; Tolerances: +/- 0.008 to 0.11 mm

Width: 3 to 600mm; Tolerances: +/- 0.15 to 0.60 mm

AISI 420 Stainless Strip Chemical composition

AISI 420 Stainless Strip Mechanical properties

AISI 420 Stainless Strip Delivery condition

This steel is only hardened by cold rolling. The modulus of elasticity, E , has a value of approximately 21 0 MPa, which cannot be increased by heat treatment.

AISI 420 Stainless Strip Surface

In the condition +C, strip shall be delivered with a bright surface (2H), or a rough, matt surface

Information to be supplied by the purchaser

The following information shall be supplied by the purchaser at the time of enquiry and order:

a) the quantity to be delivered;

• the designation of the product form (e.g. strip or cut length);
• the number of the dimensional standard (EN 10258);
• the dimensions and tolerances on thickness, width and length according to EN 10258 and, if applicable, letters denoting relevant special tolerances
• the internal coil diameter according to EN 10258
• the number of this European Standard (EN 10151);
• steel name or steel number
• the delivery condition
• the type of inspection document in accordance with EN 10204

AISI 420 Stainless Strip Internal soundness

The products shall be free from internal defects that could impair their application to a significant extent. Tests appropriate for an assessment of the internal characteristics may be agreed upon at the time of enquiry and order.

AISI 420 Stainless Strip Delivery form

Strip is usually supplied in coils. Thin strip may be wound on a supporting centre, made of steel, cardboard or other material, in order to avoid the collapse of the centre. Strip may also be supplied as a spool, in order to increase coil weight, whilst minimising coil outside diameter, in the latter case, any welds shall be clearly marked.

Alternatively, strip may be supplied in cut lengths. These may be in a box, or on a pallet, and perhaps strapped together in bundles.

Several coils, or bundles of cut lengths, may be assembled on a carrier.

Unless otherwise agreed at the time of enquiry and order, the choice of delivery form is left to the discretion of the manufacturer.

Unless otherwise agreed at the time of enquiry and order, cold-rolled strip for springs is delivered with the edges. By special agreement, strip can also be supplied with mill edges or with special edges, e.g. machined edges, deburred edges or edges dressed to produce a regular form, usually square or round.

Alloy 420 is a hardenable, martensitic stainless steel that is a modification of Alloy 410. Similar to 410, it contains a minimum of 12% chromium, just sufficient enough to give corrosion resistant properties.

Grade 420 stainless steel is a high-carbon steel with a minimum chromium content of 12%. Like any other stainless steel, grade 420 can also be hardened through heat treatment. It offers good ductility in its annealed state and excellent corrosion resistance properties when the metal is polished, surface grounded or hardened. This grade has the highest hardness - 50HRC - among all the stainless steel grades with 12% chromium.

Stainless steel grades that are similar to grade 420 stainless steels include martensitic steels such as the other versions of grade 420, having vanadium, sulphur and molybdenum in their composition, and the grade

Cold rolled narrow strip of thicknesses up to and including 3 mm in rolled widths fess than 600 mm made from the stainless steel grades. The steels are used in the conditions for the production of springs and spring parts that are exposed to corrosive effects and sometimes slightly increased temperatures.

AISI 420 Stainless Strip Inspection and testing

Product analysis

Bending ability

Coil set

Extent of testing

Tensile and bending tests

Tolerances on shape

verification of the dimensions

visual examination of the surface quality of the products;

Tensile test without checking the uniformity of tensile strength

Tensile test for checking the uniformity of tensile strength

For over 20 years, Fushun Steel, have been dedicated to manufacturing high-quality spring steel wire. Our stable quality and superior technique are the foundations of our success, and we pride ourselves on delivering products that meet or exceed our customers' expectations. With a focus on innovation and efficiency, we utilize the latest technologies to ensure consistent quality and timely delivery.

We have more than 400 employees and our plant covers an area of nearly 15,000 square meters, with an annual output of 100,000 tons. Our advanced equipment allows us to produce high-quality spring steel products efficiently, meeting the needs of our customers.

In the production of spring steel wire, a variety of specialized equipment is essential. Shot Peening Machine. Wire Drawing Machine. Phosphating Equipment. Annealing Furnace. Polishing Equipment. Wire Coiling Machine. End Grinding Machine. Tensile and Compression Testing Machine.

Our commitment to excellence and reliability has resulted in long-standing partnerships with some of the biggest names in the industry. Like MW Industries, NHK Spring, Scherdel, Sogefi, Mubea etc. We also have established partnerships with several prominent Chinese steel groups, like Baowusteel, Xinyusteel, Nanjinsteel, Shagang etc.

Our spring steel wire comes in various categories such as music wire, hard drawn wire, oil tempered wire, chrome silicon wire, chrome vanadium wire, stainless steel wire, nickel plated wire, phosphate coated wire, galvanized wire, and copper coated wire.

Spring steel wire is a versatile material that is utilized in the manufacture of a wide array of products. including automotive suspension springs, valve springs, and torsion springs. Beyond springs, paper clips and mattress supports. In addition, spring steel wire is essential in the creation of retaining rings and circlips that are utilized to secure components on shafts or within bores, and in making various types of fasteners. The durability and resilience of spring steel wire also make it a key material in the manufacturing of certain types of cable, fencing, and even some musical instruments, such as piano and guitar strings, where its ability to return to its original shape after deformation is highly valued.
