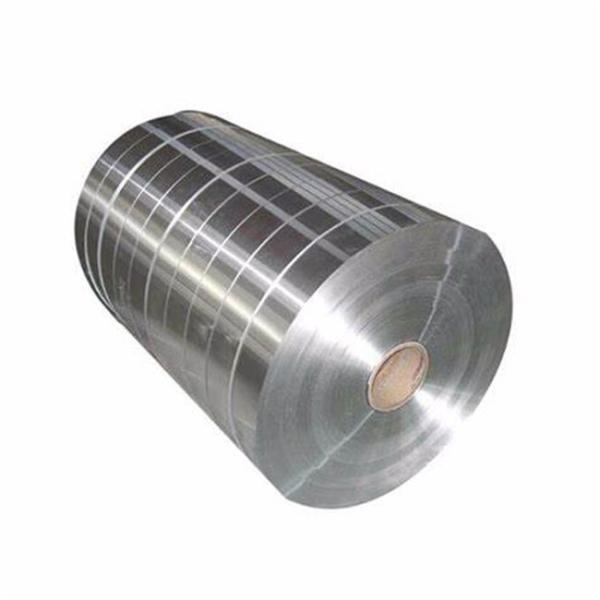

BS EN 10132-4 C125S 1.1224 High Carbon Spring Steel Strip

Grade : C125S Number: 1.1224

Dimensions and tolerances
Thickness: 0.1 to 5 mm; Tolerances: +/- 0.008 to 0.11 mm
Width: 10 to 400 mm; Tolerances: +/- 0.15 to 0.60
*accept nonstandard size, please contact with our sales.

Our Advantage
1. Precise thickness, uniform hardness. Bright surface, smooth edge.
2. High flatness of board surface, high performance after multiple bending.
3. No cracking after stamping, and the quality is stable. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
4. Professional anti-rust protective packaging. On time delivery, competitive price.
5. Large stock available, no MOQ requirement

C125S 1.1224 High Carbon Spring Steel Strip Chemical composition

C125S 1.1224 High Carbon Spring Steel Strip Mechanical properties

C125S 1.1224 High Carbon Spring Steel Strip Mandatory information

a) the quantity to be delivered;

b) the designation of the product form (cold rolled narrow strip);

c) the number of the dimensional standard (EN 10140);

d) the dimensions and tolerances on dimensions and shape and, if applicable, letters denoting relevant special tolerances;

e) the number of this European Standard including the number of the relevant part;

f) steel name or steel number

g) the delivery condition

C125S 1.1224 High Carbon Spring Steel Strip Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

-annealed or annealed and skin passed(+A or +LC);

-cold rolled(+CR);

-quenched and tempered(+QT).

NOTE The delivery condition-annealed to achieve spheroidized carbides(+AC)-may be agreed. In such cases, limits on spheroidization and mechanical properties may also be agreed at the time of enquiry and order.

C125S 1.1224 High Carbon Spring Steel Strip Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge

C125S 1.1224 High Carbon Spring Steel Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

The surface finishes of quenched and tempered cold rolled strip are as follows:

1 grey/blue oxide finish:unpolished;

2 brigth tempered:unpolished

3 polished: obtained by fine grinding, abrasive brushing or other processes;

4 polished and coloured:blue or yellow colour obtained by oxidization by heat treatment.

High carbon steel is an ideal material for custom flat springs, custom clips, and custom sheet metal stampings. High Carbon Steel Strips combines ease of fabrication with good strength and surface finish, is valued for its strength properties and operates at significantly higher levels than the mild steel grades. High carbon steel strip can be finished to meet the needs of a wide range of products. Where tensile strength and hardness are required, High Carbon steels are the material of choice. High Carbon Steel Strips Grades : C60, C65, C70, C75, C85, HC-14, En 42 J, C-98, C-100, C-124, HC21 etc. We offer spring steel strip in various shapes and sizes according to your final uses. These have excellent hardens property and high yield strength. Clients can avail these at competitive prices.

Spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.

The steel C125S is used as cold rolled strip for springs and special applications in thicknesses of up to 6 mm and as tempered cold strip in thicknesses from 0.30 to 3.00 mm. The springs made of steel C125S are suitable for highly stressed tension springs, especially in the watch industry, as well as for pen nibs.

Steel C125S, 1.1224 - implementation and specification: C125S, is Non-alloy carbon spring steel is used for leaf springs and springs with small cross-sections. It is characterized by low hardenability and high carbon range in relation to C90S, C75S, C85S, and C67S steel. Designed for spring elements requiring high elasticity and hardness.It does not show corrosion resistance, and during heat treatment it is exposed to decarburization and oxidation, which means that the material should be protected against treatment using a protective atmosphere. Poorly carried out treatment is associated with reduced fatigue strength.Products made of C125S steel and its equivalents are produced in the form of flat semi-finished products - cold rolled strips, small-format thin sheets. Tempering of C125S steel is carried out in oil, and after tempering the product shows the structure of tempered martensite.Products made of C125S steel are characterized by high tensile strength and yield strength.

C125S 1.1224 High Carbon Spring Steel Strip Inspection and testing

verification of the dimensions

visual examination of the surface quality

Chemical analysis

Extent of testing

Tensile and bending tests

Tolerances on shape
