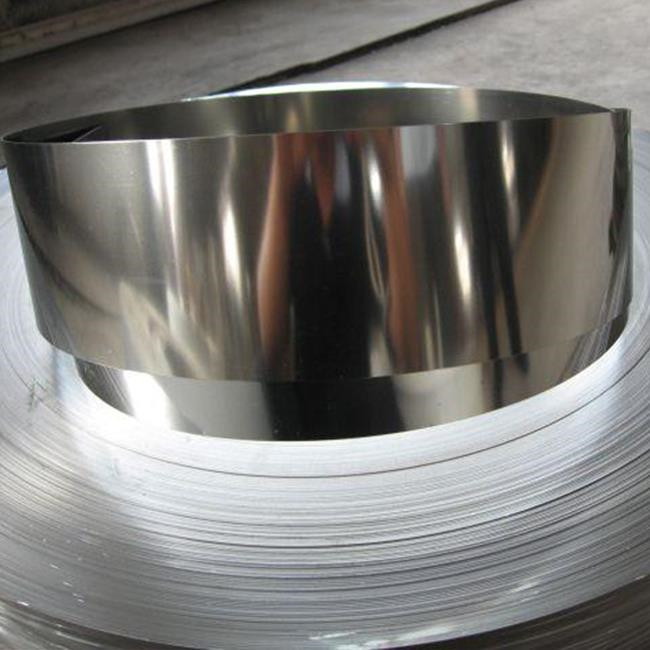

C125S 1.1224 Cold Rolled Narrow Spring Steel Strip

Grade : C125S Number: 1.1224

C125S 1.1224 Cold Rolled Spring Steel Strip Chemical composition

C125S 1.1224 Cold Rolled Spring Steel Strip Mechanical properties

C125S 1.1224 Cold Rolled Spring Steel Strip Delivery condition

Cold rolled narrow steel strip covered by EN10132-4 shall be supplied in one of the following delivery conditions:

1 cold rolled and annealed or annealed and skin passed(+A or +LC);

2 cold rolled(+CR);

3 spheroidized carbides(+AC)

We also can supply quenched and tempered(+QT).

C125S 1.1224 Cold Rolled Spring Steel Strip Surface finish

The surface finish of cold rolled narrow steel strip shall be bright as produced by rolling and annealing in a controlled atmosphere.

C125S 1.1224 Cold Rolled Spring Steel Strip Mandatory information

The following information shall be supplied by the purchaser at the time of enquiry and order to enable the supplier to comply with the requirements of this European Standard:

a) the quantity to be delivered;

b) the dimensions and tolerances on dimensions and shape and, if applicable, letters denoting relevant special tolerances;

c) the number of the dimensional standard (EN 10140);

d) the designation of the product form (cold rolled narrow strip);

e) the delivery condition

f) steel name or steel number

g) the number of this European Standard including the number of the relevant part;

h) if required, the type of inspection document in accordance with EN 10204.

C125S 1.1224 spring steel strip is used to build springs for a great variety of purposes. Below especially the cold rolled (carbon as well as stainless) spring steel strip will be described in detail. The most common production width of spring steel strip is about 300 mm (11.811 inches). As a matter of course spring steel strip can be slit or cut to length (sheets). We supply a very wide range of high carbon and alloys, covering the most stringent industrial requirements. We have also developed a unique know-how in the design of custom solutions for special applications.

Steel C125S, 1.1224 - implementation and specification: C125S, is Non-alloy carbon spring steel is used for leaf springs and springs with small cross-sections. It is characterized by low hardenability and high carbon range in relation to C90S, C75S, C85S, and C67S steel. Designed for spring elements requiring high elasticity and hardness.It does not show corrosion resistance, and during heat treatment it is exposed to decarburization and oxidation, which means that the material should be protected against treatment using a protective atmosphere. Poorly carried out treatment is associated with reduced fatigue strength.Products made of C125S steel and its equivalents are produced in the form of flat semi-finished products - cold rolled strips, small-format thin sheets. Tempering of C125S steel is carried out in oil, and after tempering the product shows the structure of tempered martensite.Products made of C125S steel are characterized by high tensile strength and yield strength. Thermal improvement consists in austenitising the product at a temperature of 780 - 860 and tempering at a temperature of 350 - 500 ℃.

cold-rolled spring steel strips are gaining popularity in various industries. They are increasingly being implemented in engineering projects, through a fairly large number of small component manufacturers, parts and machine components.By making the right choice to buy steel strips, we reduce the amount of waste produced, thereby saving time and space. With a constant focus on the needs and requirements of our customers, we have created a unique offer.

C125S 1.1224 Cold Rolled Spring Steel Strip Decarburization

For silicon alloyed steels, decarburization shall not exceed 3% of the material thickness per side,for non silicon alloyed steels, decarburization shall not exceed 2% of the material thickness per side when measure data distance of 5mm from the stripe edge

C125S 1.1224 Cold Rolled Spring Steel Strip Inspection and testing

verification of the dimensions

visual examination of the surface quality

Chemical analysis

Extent of testing

Tensile and bending tests

Tolerances on shape
