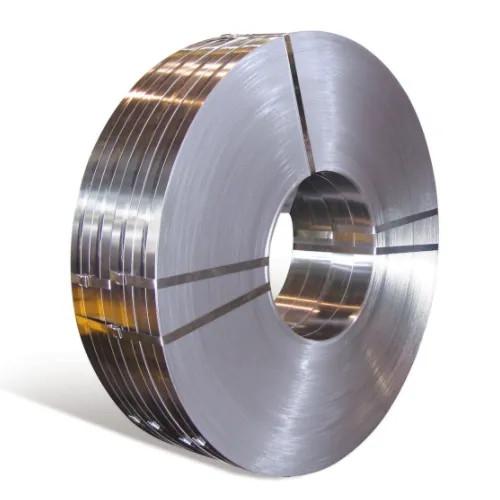

DIN 17222 Ck101 1.1274 Cold Rolled Steel Strips for Springs

Cold rolled steel strip for springs is distinguished by high dimensional accuracy and good surface quality and, in the cold rolled + hardened + tempered condition (H + A) offers the possibility of achieving high values of hardness, tensile strength and elastic limit.

Ck101 1.1274 Introduce

Ck101 1.1274 steel is one of the higher carbon steels used for high hardness in the fully hardened condition. Low-alloy carbon steel for thermal improvement by oil hardening available in strips and thin cold-rolled sheets used for springs and leaf springs with small cross-sections. It is characterized by low hardenability, abrasion resistance and decarburization and oxidation tendency during heat treatment.

Ck101 1.1274 Dimensions and permissible deviations

Thickness: 0.1 to 4mm; Tolerances: +/- 0.008 to 0.11 mm

Width: 10 to 600mm; Tolerances: +/- 0.15 to 0.60mm

Ck101 1.1274 Equivalent Grade

Ck101 1.1274 Chemical composition

Ck101 1.1274 Treatment condition on delivery

Cold rolled + soft annealed : G

Cold rolled + hardened + tempered : H + A

Ck101 1.1274 Mechanical properties in the cold rolled + soft annealed condition G

Ck101 1.1274 Tensile strength in the cold rolled + hardened + tempered condition (H + A)

Ck101 1.1274 Vickers hardness in the cold rolled + hardened + tempered condition (H + A)

Ck101 1.1274 Surface condition

Strip to be supplied in the

1 cold rolled + soft annealed G or

2 cold rolled + soft annealed + cold rolled (G + K) condition

must have a bright, metallically clean surface.

Cold rolled + hardened + tempered (H + A) strip is supplied, as agreed at the time of ordering, with

1 grey-blue (GR),

2 bright (8K),

3 polished (P) or

4 polished and colour-tempered (P & AF) surface.

Ck101 1.1274 Types of heat treatment

Approximate values for heat treatment and minimum hardness values in the hardened condition of cold rolled steel strips for springs

Ck101 1.1274 Acceptance testing and test certificates

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
