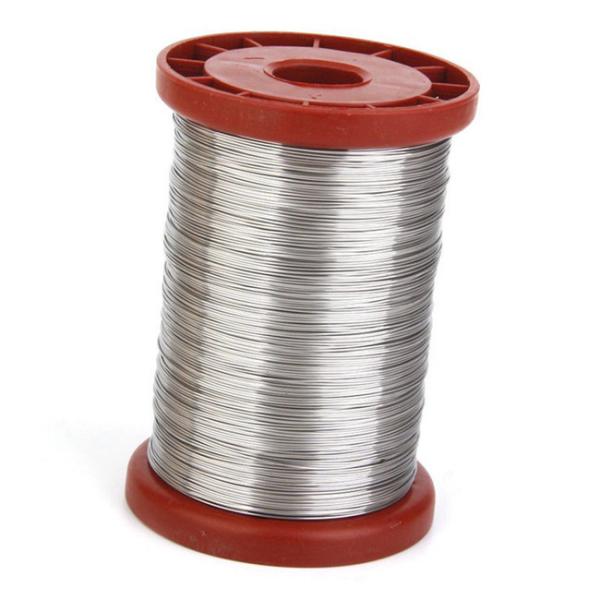

JIS G3522 SWP-A Class Piano Wire

JIS G3522 SWP-A Piano Wire Chemical Composition

JIS G3522 SWP-A Piano Wire Surface Condition

The surface of the wire as-received shall be free of rust, excessive scale, die marks, pits, and scratches detrimental to the end application. Seams shall not exceed 2 % of the wire diameter or 0.15 mm [0.006 in.], whichever is less.

JIS G3522 SWP-A Piano Wire Manufacture

The steel may be made by any commercially accepted steel-making process. The rod to be used in the manufacture of wire furnished to this specification shall be in accordance with Specification A510/A510M.

The finished wire shall be free from detrimental pipe and undue segregation.

The wire shall be cold drawn to produce the desired mechanical properties.

Type 1 wire shall be directly drawn from either as-rolled rods or from air patented rods or wire to the final wire diameter.

Type 2 wire shall be drawn from either patented rod or patented wire to the final wire diameter. Air patenting is not allowed.

Type 2 wire may be substituted for Type 1 wire. Conversely. Type 1 wire may not be substituted for Type 2 wire.

The method of patenting, and in particular the method utilized for controlled cooling, can be designed to optimize the microstructure and mechanical properties of either patented wire rod or patented wire, as well as of wires drawn from either of these. Because patenting is performed in a linear manner rather than in a coiled or serpentine manner, the uniformity of microstructure and mechanical properties along the patented wire or patented wire rod length is improved compared to that existing in either of these prior to palenting.

JIS G3522 SWP-A Piano Wire Introduce

round cold- drawn steel music spring quality wire, uniform in mechanical properties, intended especially for the manufacture of springs subject to high stresses or requiring good fatigue properties.

Application

Piano wire, class A, SWP-A, for spring receiving principally dynamic load

JIS G3522 SWP-A Piano Wire Surface Finish

Music wire is supplied with many different kinds of finish such as bright, phosphate, tin. and others. Finish desired should be specified on purchase orders.

JIS G3522 SWP-A Piano Wire Ordering Information

Orders for steel wire under this specification shall contain the following information:

1 Quantity (weight in lbs, or mass in kg)

2 Name (music steel spring wire) and type (Type 1 or Type 2) of material

3 Diameter

4 Finish

5 Packaging

6 ASTM designation and year of issue.

option to specify additional requirements

1 Requirements for certifications, heat, or test reports

2 Special packing, marking, and loading requirements

Condition of decarburized layer

SWP-A, detrimental decarburized layer shall not be observed

JIS G3522 SWP-A Piano Wire Decarburization

The maximum affected depth of decarburization shall not exceed 2.0 % of the wire diameter or 0. 15 mm [0.006 in.], whichever is less. The maximum average partial decarburization depth shall not exceed 1.5 % of the wire diameter

JIS G3522 SWP-A Piano Wire Packaging and Marking

1 The coil, reel or spool mass, dimensions, and the method of packaging shall be agreed upon between the manufacturer and purchaser.

2 A tag shall be attached securely to each coil of wire with identifying information as agreed upon by the purchaser and manufacturer.

3 Unless otherwise specified in the purchaser's order, packaging, marking, and loading for shipments shall be in accordance with those procedures recommended by Practices A700.

Piano wire, or "music wire", is a specialized type of wire made for use in piano strings but also in other applications as springs. It is made from tempered high-carbon steel, also known as spring steel, which replaced iron as the material starting in 1834.

Piano wire has a very high tensile strength to cope with the heavy demands placed upon piano strings; accordingly, piano wire is also used for a number of other purposes, including springs, surgical uses, and in special effects.

Other applications
Piano wire is also used in the fabrication of springs, fishing lures, special effects in the movie industry,[4] scaffold cross-bracing, orthodontic and pharyngeal surgery, and for the cutting of cheese and soap. It is also commonly used in hobby applications such as model railroading, both control line and radio-controlled aircraft, and knitting. At least in urban legend, it is employed by assassins as a garrote.[

For over 20 years, Fushun Steel, have been dedicated to manufacturing high-quality spring steel wire. Our stable quality and superior technique are the foundations of our success, and we pride ourselves on delivering products that meet or exceed our customers' expectations. With a focus on innovation and efficiency, we utilize the latest technologies to ensure consistent quality and timely delivery.

We have more than 400 employees and our plant covers an area of nearly 15,000 square meters, with an annual output of 100,000 tons. Our advanced equipment allows us to produce high-quality spring steel products efficiently, meeting the needs of our customers.

In the production of spring steel wire, a variety of specialized equipment is essential. Shot Peening Machine. Wire Drawing Machine. Phosphating Equipment. Annealing Furnace. Polishing Equipment. Wire Coiling Machine. End Grinding Machine. Tensile and Compression Testing Machine.

Our commitment to excellence and reliability has resulted in long-standing partnerships with some of the biggest names in the industry. Like MW Industries, NHK Spring, Scherdel, Sogefi, Mubea etc. We also have established partnerships with several prominent Chinese steel groups, like Baowusteel, Xinyusteel, Nanjinsteel, Shagang etc.

Our spring steel wire comes in various categories such as music wire, hard drawn wire, oil tempered wire, chrome silicon wire, chrome vanadium wire, stainless steel wire, nickel plated wire, phosphate coated wire, galvanized wire, and copper coated wire.

Spring steel wire is a versatile material that is utilized in the manufacture of a wide array of products. including automotive suspension springs, valve springs, and torsion springs. Beyond springs, paper clips and mattress supports. In addition, spring steel wire is essential in the creation of retaining rings and circlips that are utilized to secure components on shafts or within bores, and in making various types of fasteners. The durability and resilience of spring steel wire also make it a key material in the manufacturing of certain types of cable, fencing, and even some musical instruments, such as piano and guitar strings, where its ability to return to its original shape after deformation is highly valued.
